SWIT GA PT50E DMX Motorized Pantograph for Stage Lighting & Studio Production – Special Order | Professional Theater & Event Equipment

The SWIT GA-PT50E is a high-precision motorized pantograph hinge designed for professional studio lighting. Featuring DMX-controlled up-and-down positioning, this system allows seamless height adjustments via a DMX console, providing precise control over lighting placement. Built from durable aluminium alloy, it supports a maximum load of 30kg and extends from 0.8m to 5m, ensuring stability and versatility. With a movement speed of 10cm per second, it delivers smooth and efficient adjustments, making it an essential tool for broadcast studios, film sets, and professional video productions.

DMX Motorized Control and Adjustable Expansion

The GA-PT50E pantograph hinge features DMX-controlled motorized stretch control, allowing operators to adjust the height of studio lights remotely via a DMX console. The movement speed of 10cm per second ensures smooth transitions, making it ideal for precise lighting adjustments in real-time production environments. With an expansion length ranging from 0.8m to 5m, it offers maximum flexibility for various studio configurations.

Rear Panel Interfaces and Cable Management

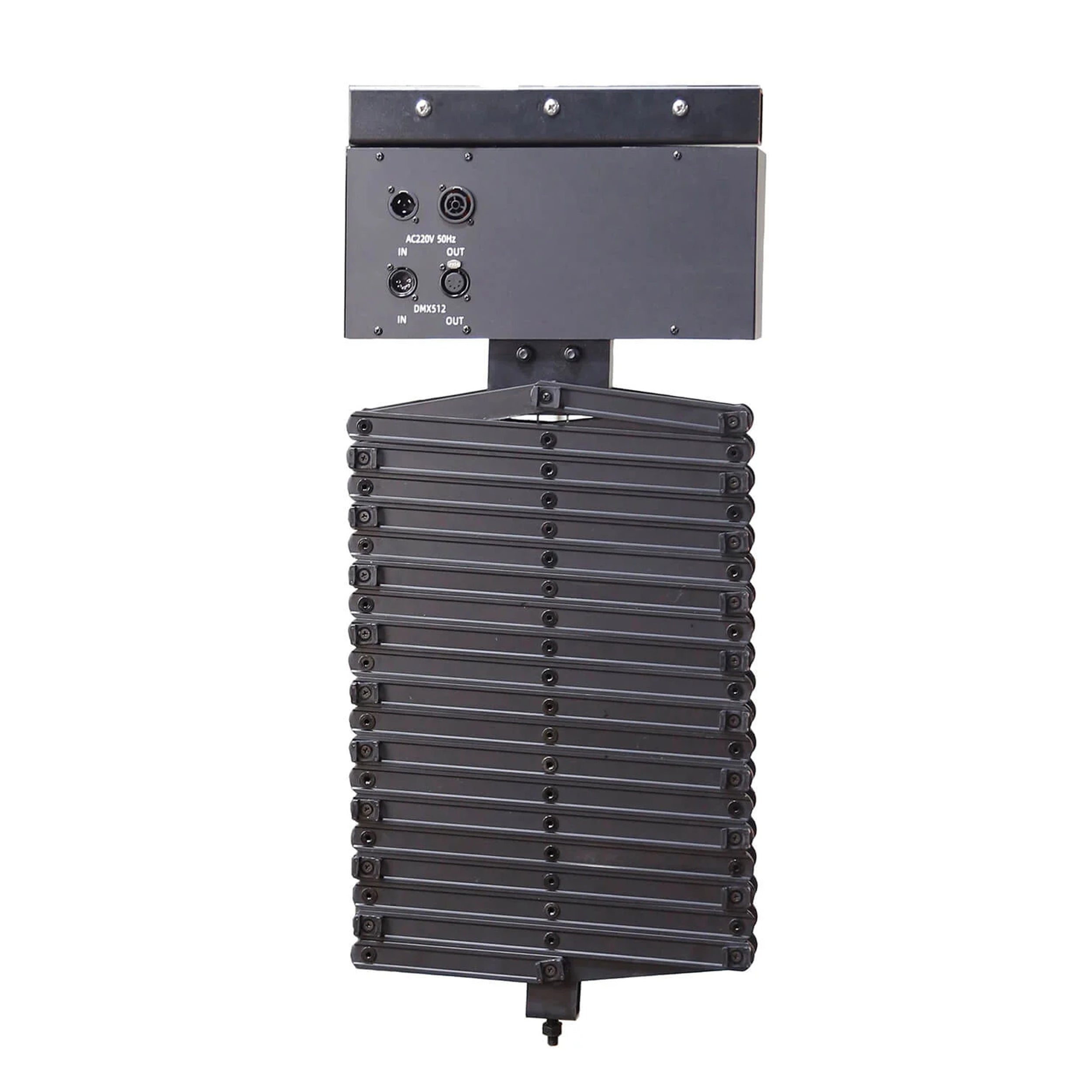

Equipped with professional-grade connectivity, the GA-PT50E DMX motorized pantograph hinge includes a 5-pin DMX input and loop output for serial connection, as well as PowerCON True1 AC 100-240V, 50/60Hz power input and loop output. These features enable seamless integration into complex lighting setups.

A built-in cable organiser on the rear side ensures that power and DMX cables remain neatly aligned as the pantograph moves, preventing tangles and maintaining a clean studio workspace. This feature enhances safety and convenience by keeping essential connections secure and organised.

Precise Positioning and Secure Installation

On the front panel, users can set the DMX address to control the up-and-down movement of the pantograph, ensuring precise positioning of lighting fixtures. The pantograph connects securely to ceiling hooks using screw bolts, with the hook providing a perfect fit.

At the bottom, a screw bolt and nut allow for easy attachment to studio light yokes. For SWIT lights, users should remove the baby pin socket on the yoke before installation to ensure proper mounting.

The GA-PT50E DMX-Controlled Motorized Pantograph Hinge is a premium solution for professional studios that require automated, precise lighting adjustments. The integrated cable organiser keeps power and DMX cables neatly aligned, while robust mounting options ensure a secure installation. Designed for demanding studio environments, the SWIT GA-PT50E enhances workflow efficiency and lighting precision.

PLEASE NOTE: This particular product is part of our “Special Order” selection, so we may not hold stock for this, and is placed to order. If you are interested in this item, you can place this order as a Pre-Order, and we will Special Order your product directly from the manufacturer. This should take approximately 2-4 Working Weeks to be delivered, but please note this is subject to change.
